PTC 自恢复保险丝

制造商	封装/外壳	系列	包装	产品状态	类型	电压 - 最大值	保持电流 (Ih)（最大值）	触发电流 (It)	电流 - 最大值	触发时间	电阻 - 初始 (Ri)（最小值）	电阻 - 触发后 (R1)（最大值）	电阻 - 25°C（典型值）	工作温度	等级	认证	额定值	安装类型	尺寸 / 尺寸	高度 - 安装后（最大值）	厚度（最大值）	引线间距
EPCOS - TDK Electronics Littelfuse Inc.	- 0402 (1005 Metric) 0402 (1005 Metric), Concave 0603 (1608 Metric) 0603 (1608 Metric), Concave 0805 (2012 Metric), Concave 1206 (3216 Metric) 1206 (3216 Metric), Concave 1210 (3225 Metric) 1210 (3225 Metric), Concave 1812 (4532 Metric) 1812 (4532 Metric), Concave 2-SMD 2016 (5041 Metric), Concave 2920 (7351 Metric), Concave 3225 (8063 Metric) 4-SMD 4032 (1080 Metric) 4520 (11350 Metric), Concave Blade Type Nonstandard SMD Radial, Disc Strap	* - B59101 B59115 B59201 B59215 B59301 B59315 B59407 B59606 B59607 B59622 B59623 B59707 B59750 B59751 B59770 B59771 B59772 B59773 B59774 B59807 B59907 B59935 B59940 B59945 B59950 B59955 B59960 B59965 B59970 B59975 B59980 B59985 B59990 B59995 Lo Rho LoRho Surface Mount MHP nanoSMD POLY-FUSE® 60R POLY-FUSE®, 0603L POLY-FUSE®, 0805L POLY-FUSE®, 1206L POLY-FUSE®, 1210L POLY-FUSE®, 16R POLY-FUSE®, 1812L POLY-FUSE®, 2016L POLY-FUSE®, 250R POLY-FUSE®, 250S POLY-FUSE®, 2920L POLY-FUSE®, 30R POLY-FUSE®, 600R POLY-FUSE®, 60R POLY-FUSE®, 72R POLY-FUSE®, LoRho POLY-FUSE®, LR POLY-FUSE®, LT POLY-FUSE®, ST POLY-FUSE®, USBR POLY-FUSE®, VL POLY-FUSE®, VT PolySwitch® PolySwitch® 1206L PolySwitch® 1210L PolySwitch® AHS PolySwitch® ASMD PolySwitch® Low Rho PolySwitch® picoASMDC PolySwitch®, AHEF PolySwitch®, ASMD PolySwitch®, femtoASMD PolySwitch®, femtoSMD PolySwitch®, LoRho PolySwitch®, microASMD PolySwitch®, microSMD PolySwitch®, miniASMD PolySwitch®, miniSMD PolySwitch®, MXP PolySwitch®, nanoASMD PolySwitch®, nanoASMDC PolySwitch®, nanoSMD PolySwitch®, nanoSMDC020F PolySwitch®, picoASMD PolySwitch®, picoSMD PolySwitch®, RGEF PolySwitch®, RHEF PolySwitch®, RKEF PolySwitch®, RUEF PolySwitch®, RUSBF PolySwitch®, RXE PolySwitch®, RXEF PolySwitch®, SMD PolySwitch®, SRP PolySwitch®, TCF250 PolySwitch®, TR600 PolySwitch®, TRF250 PolySwitch®, TRF600 PolySwitch®, TS250 PolySwitch®, TS600 PolySwitch®, TSL250 PolySwitch®, TSM PolySwitch®, TSV250 PolySwitch®, VLP PolySwitch®, VLR PolySwitch®, VTP PolySwitch®nanoASMDCH TS	Bag Box Bulk Cut Tape (CT) Digi-Reel® Strip Tape & Box (TB) Tape & Reel (TR) Tray	Active Discontinued Not For New Designs Obsolete	- Ceramic Polymeric	- 1.0kV 100V 100V (250V Int) 12V 13.2V 135VAC 15V 160V 16V 20V 24V 250V 250V (600V Int) 250V (60V Int) 265V 30V 32V 33V 36V 400V 420V 440V 48V 54V 550V 5V 60V 60V (250V Int) 60V (600V Int) 63V 6V 72V 80V 80V (250V Int) 8V 90V 9V	- 1 A 1.1 A 1.2 A 1.25 A 1.3 A 1.35 A 1.5 A 1.55 A 1.6 A 1.7 A 1.75 A 1.8 A 1.85 A 1.9 A 10 A 10 mA 100 mA 11 A 110 mA 12 A 12 mA 120 mA 125 mA 13 A 13 mA 130 mA 14 A 140 mA 145 mA 15 A 15 mA 150 mA 160 mA 165 mA 170 mA 180 mA 183 mA 184 mA 2 A 2.1 A 2.2 A 2.3 A 2.4 A 2.5 A 2.6 A 2.7 A 2.82 A 20 mA 200 mA 21 mA 245 mA 250 mA 3 A 3.3 A 3.5 A 3.7 A 3.75 A 3.8 A 30 A 30 mA 300 mA 310 mA 320 mA 330 mA 35 mA 350 mA 355 mA 4 A 4.5 A 40 mA 400 mA 450 mA 460 mA 5 A 5.5 A 50 mA 500 mA 55 mA 550 mA 6 A 6.5 A 60 mA 600 mA 65 mA 650 mA 7 A 7.5 A 70 mA 700 mA 75 mA 750 mA 8 A 80 mA 85 mA 850 mA 87 mA 9 A 90 mA 900 mA 950 mA	- 1 A 1.1 A 1.2 A 1.3 A 1.4 A 1.45 A 1.5 A 1.6 A 1.7 A 1.75 A 1.8 A 1.9 A 1.95 A 10 A 10.2 A 10.8 A 100 mA 11 A 11.9 A 110 mA 112 mA 115 mA 12 A 120 mA 125 mA 127 mA 13 A 13.1 A 13.6 A 130 mA 135 mA 137 mA 14 A 140 mA 145 mA 15 A 15.3 A 150 mA 16 A 16.5 A 160 mA 165 mA 17 A 17 mA 170 mA 173 mA 18 A 18.5 A 18.7 A 180 mA 190 mA 2 A 2.16 A 2.2 A 2.25 A 2.3 A 2.5 A 2.6 A 2.65 A 2.7 A 2.8 A 20 A 20.4 A 200 mA 210 mA 22 mA 220 mA 23.8 A 230 mA 24 A 24 mA 240 mA 245 mA 25 mA 250 mA 260 mA 265 mA 27 A 28 A 280 mA 290 mA 3 A 3.05 A 3.2 A 3.3 A 3.4 A 3.5 A 3.6 A 3.7 A 3.75 A 3.8 A 3.9 A 30 mA 300 mA 310 mA 32 mA 320 mA 340 mA 350 mA 360 mA 370 mA 380 mA 39 mA 390 mA 4 A 4.1 A 4.15 A 4.2 A 4.5 A 4.7 A 4.9 A 40 mA 400 mA 420 mA 450 mA 470 mA 48 mA 5 A 5.1 A 5.2 A 5.3 A 5.4 A 5.5 A 5.8 A 5.9 A 50 A 50 mA 500 mA 510 mA 55 mA 550 mA 580 mA 6 A 6.2 A 6.3 A 6.5 A 6.8 A 60 mA 600 mA 640 mA 650 mA 660 mA 680 mA 685 mA 690 mA 7 A 7.5 A 7.8 A 70 mA 700 mA 750 mA 8 A 8.1 A 8.3 A 8.5 A 8.9 A 800 mA 820 mA 85 mA 850 mA 86 mA 860 mA 9 A 9.1 A 90 mA 900 mA 920 mA 950 mA 97 mA 980 mA	- 1 A 1.4 A 1.5 A 1.6 A 10 A 100 A 100 mA 120 mA 150 mA 170 mA 2 A 2.2 A 2.5 A 20 A 200 mA 220 mA 3 A 300 mA 4 A 4.1 A 4.3 A 4.6 A 40 A 400 mA 5.5 A 50 A 500 mA 6 A 60 A 7 A 70 A 700 mA 8 A 9 A	- 0.04 s 0.06 s 0.1 s 0.4 s 1 s 1.1 s 1.2 s 1.3 s 1.4 s 1.5 s 1.6 s 1.7 s 1.8 s 10 ms 10 s 10.3 s 10.8 s 100 ms 11 s 11.4 s 12 s 12.6 s 12.7 s 13 s 14 s 14.5 s 15 s 15.6 s 150 ms 16 s 17.5 s 18 s 18.8 s 19.8 s 2 s 2.2 s 2.3 s 2.4 s 2.5 s 2.9 s 20 ms 20 s 200 ms 21 s 22 s 24 s 28 s 3 s 3.2 s 3.3 s 3.4 s 3.5 s 3.8 s 300 ms 4 s 4.3 s 4.5 s 40 s 400 ms 5 s 5.2 s 5.3 s 5.5 s 5.9 s 50 ms 500 ms 6 s 6.3 s 6.6 s 600 ms 7 s 7.2 s 7.3 s 7.5 s 700 ms 750 ms 8 ms 8 s 8.2 s 8.7 s 80 ms 800 ms 9 s 9.5 s 9.6 s 900 ms	- 1 mOhms 1 Ohms 1.1 Ohms 1.2 Ohms 1.25 Ohms 1.4 Ohms 1.5 Ohms 1.6 Ohms 1.7 Ohms 1.83 Ohms 1.85 Ohms 1.9 Ohms 10 mOhms 100 mOhms 11 mOhms 110 mOhms 12 mOhms 12 Ohms 120 mOhms 13 mOhms 130 mOhms 14 mOhms 14 Ohms 15 mOhms 15 Ohms 15.4 Ohms 150 mOhms 150 Ohms 16.5 Ohms 17 mOhms 170 mOhms 18 mOhms 180 mOhms 190 mOhms 2 mOhms 2 Ohms 2.1 Ohms 2.5 mOhms 2.5 Ohms 2.6 mOhms 20 mOhms 200 mOhms 21 mOhms 22 mOhms 220 mOhms 23 mOhms 24 mOhms 240 mOhms 25 mOhms 250 mOhms 265 Ohms 29 mOhms 3 mOhms 3 Ohms 3.2 mOhms 3.3 mOhms 3.3 Ohms 3.5 Ohms 3.6 Ohms 3.7 mOhms 30 mOhms 300 mOhms 300 Ohms 310 mOhms 320 mOhms 33 mOhms 35 mOhms 35 Ohms 350 mOhms 38 mOhms 39 mOhms 4 mOhms 4 Ohms 4.1 mOhms 4.5 Ohms 4.7 mOhms 40 mOhms 400 mOhms 45 mOhms 450 mOhms 48 mOhms 480 mOhms 5 mOhms 5 Ohms 5.4 Ohms 5.5 mOhms 5.6 mOhms 50 mOhms 50 Ohms 500 mOhms 55 mOhms 550 mOhms 59 mOhms 6 mOhms 6 Ohms 6.2 mOhms 6.3 Ohms 6.5 Ohms 60 mOhms 600 mOhms 640 Ohms 65 mOhms 650 mOhms 7 mOhms 7 Ohms 7.3 Ohms 7.4 mOhms 7.7 mOhms 7.8 Ohms 70 mOhms 700 mOhms 74 mOhms 750 mOhms 8 mOhms 8 Ohms 8.5 Ohms 80 mOhms 800 mOhms 85 mOhms 880 mOhms 9 Ohms 9.4 mOhms 9.6 Ohms 90 mOhms 900 mOhms 950 mOhms 98 mOhms	- 1 Ohms 1.1 Ohms 1.17 Ohms 1.2 Ohms 1.25 Ohms 1.29 Ohms 1.3 Ohms 1.35 Ohms 1.4 Ohms 1.5 kOhms 1.5 Ohms 1.6 Ohms 1.7 Ohms 1.75 Ohms 1.9 Ohms 1.95 Ohms 10 mOhms 10 Ohms 10.2 mOhms 100 mOhms 100 Ohms 102 mOhms 105 mOhms 11 mOhms 11 Ohms 110 mOhms 112 mOhms 115 mOhms 12 mOhms 12 Ohms 12.7 Ohms 120 mOhms 125 mOhms 13 mOhms 13 Ohms 13.5 mOhms 13.5 Ohms 130 mOhms 134 mOhms 14 mOhms 14 Ohms 140 mOhms 143 mOhms 15 mOhms 15 Ohms 150 mOhms 16 mOhms 16 Ohms 160 mOhms 165 mOhms 17 mOhms 17 Ohms 17.5 mOhms 170 mOhms 18 mOhms 18 Ohms 180 mOhms 190 mOhms 2 Ohms 2.1 Ohms 2.2 Ohms 2.3 Ohms 2.6 Ohms 20 mOhms 20 Ohms 200 mOhms 21 mOhms 210 mOhms 22 mOhms 22 Ohms 220 mOhms 220 Ohms 230 mOhms 24 mOhms 24 Ohms 25 mOhms 25 Ohms 250 mOhms 26 mOhms 260 mOhms 28 mOhms 280 mOhms 290 mOhms 3 Ohms 3.1 Ohms 3.2 Ohms 3.3 Ohms 3.4 Ohms 3.5 Ohms 3.6 Ohms 30 mOhms 30 Ohms 300 mOhms 32 mOhms 320 mOhms 33 Ohms 34 mOhms 340 mOhms 35 mOhms 35 Ohms 350 mOhms 36 mOhms 360 mOhms 37 mOhms 370 mOhms 380 mOhms 390 mOhms 4 Ohms 4.1 Ohms 4.2 Ohms 4.3 Ohms 4.4 Ohms 4.5 Ohms 4.8 Ohms 40 mOhms 40 Ohms 400 mOhms 410 mOhms 43 mOhms 430 mOhms 44 mOhms 45 mOhms 450 mOhms 460 mOhms 47 mOhms 470 mOhms 470 Ohms 48 mOhms 480 mOhms 5 Ohms 5.5 Ohms 50 mOhms 50 Ohms 500 mOhms 52 mOhms 520 mOhms 53 mOhms 54 mOhms 55 mOhms 58 mOhms 6 mOhms 6 Ohms 6.3 mOhms 6.4 mOhms 6.5 mOhms 6.5 Ohms 60 mOhms 600 mOhms 62 mOhms 63 mOhms 64 mOhms 640 mOhms 65 mOhms 680 mOhms 7 mOhms 7 Ohms 7.5 Ohms 70 mOhms 70 Ohms 700 mOhms 72 mOhms 720 mOhms 75 mOhms 750 mOhms 76 mOhms 78 mOhms 79 mOhms 8 mOhms 8 Ohms 8.6 mOhms 8.9 mOhms 80 mOhms 800 mOhms 82 mOhms 85 mOhms 850 mOhms 9 mOhms 9.2 mOhms 9.9 mOhms 90 mOhms 900 mOhms 92 mOhms 950 mOhms 97.5 mOhms	- 1.1 kOhms 1.2 kOhms 1.2 Ohms 1.5 kOhms 1.65 Ohms 1.8 Ohms 10 Ohms 120 Ohms 125 Ohms 13 Ohms 15 Ohms 150 Ohms 16 Ohms 160 Ohms 2.2 Ohms 2.3 Ohms 20 Ohms 22 Ohms 25 Ohms 27 Ohms 3.1 Ohms 3.5 Ohms 3.7 Ohms 300 mOhms 35 Ohms 4.3 Ohms 4.6 Ohms 4.9 Ohms 400 Ohms 45 Ohms 450 mOhms 5 Ohms 5.6 Ohms 50 Ohms 500 Ohms 55 Ohms 6 Ohms 600 Ohms 62 Ohms 65 Ohms 7.5 kOhms 70 Ohms 8 Ohms 80 Ohms 800 mOhms 9 Ohms 9.4 Ohms	- -20°C ~ 85°C -40°C ~ 125°C -40°C ~ 60°C -40°C ~ 70°C -40°C ~ 80°C -40°C ~ 85°C 0°C ~ 60°C 0°C ~ 70°C 0°C ~ 85°C 85°C	- Automotive	- AEC-Q200	- AEC-Q200	- Holder Surface Mount Through Hole User Defined	- 0.039" L x 0.020" W (1.00mm x 0.50mm) 0.063" L x 0.031" W (1.60mm x 0.80mm) 0.063" L x 0.032" W (1.60mm x 0.80mm) 0.083" L x 0.053" W (2.10mm x 1.35mm) 0.083" L x 0.055" W (2.10mm x 1.40mm) 0.126" L x 0.062" W (3.20mm x 1.58mm) 0.126" L x 0.063" W (3.20mm x 1.59mm) 0.126" L x 0.063" W (3.20mm x 1.60mm) 0.126" L x 0.065" W (3.20mm x 1.64mm) 0.126" L x 0.065" W (3.20mm x 1.65mm) 0.126" L x 0.098" W (3.20mm x 2.50mm) 0.127" L x 0.063" W (3.22mm x 1.60mm) 0.127" L x 0.063" W (3.22mm x 1.61mm) 0.127" L x 0.101" W (3.22mm x 2.56mm) 0.127" L x 0.101" W (3.22mm x 2.58mm) 0.127" L x 0.102" W (3.22mm x 2.58mm) 0.128" L x 0.065" W (3.25mm x 1.65mm) 0.134" L x 0.071" W (3.40mm x 1.80mm) 0.138" L x 0.138" W (3.50mm x 3.50mm) 0.157" Dia x 0.138" T (4.00mm x 3.50mm) 0.157" Dia x 0.197" T (4.00mm x 5.00mm) 0.179" L x 0.128" W (4.55mm x 3.24mm) 0.181" L x 0.128" W (4.60mm x 3.24mm) 0.181" L x 0.181" W (4.60mm x 4.60mm) 0.186" L x 0.131" W (4.72mm x 3.33mm) 0.187" L x 0.187" W (4.75mm x 4.75mm) 0.189" Dia x 0.150" T (4.80mm x 3.80mm) 0.200" L x 0.160" W (5.08mm x 4.07mm) 0.201" Dia x 0.118" T (5.10mm x 3.00mm) 0.209" Dia x 0.150" T (5.30mm x 3.80mm) 0.217" L x 0.217" W (5.50mm x 5.50mm) 0.228" Dia x 0.181" T (5.80mm x 4.60mm) 0.228" Dia x 0.354" T (5.80mm x 9.00mm) 0.236" L x 0.150" W (6.00mm x 3.80mm) 0.240" L x 0.272" W (6.10mm x 6.90mm) 0.256" Dia x 0.118" T (6.50mm x 3.00mm) 0.256" Dia x 0.138" T (6.50mm x 3.50mm) 0.256" Dia x 0.197" T (6.50mm x 5.00mm) 0.256" L x 0.181" W (6.50mm x 4.60mm) 0.260" L x 0.098" W (6.60mm x 2.50mm) 0.272" Dia x 0.118" T (6.90mm x 3.00mm) 0.272" Dia x 0.122" T (6.90mm x 3.10mm) 0.272" L x 0.118" W (6.90mm x 3.00mm) 0.272" L x 0.122" W (6.90mm x 3.10mm) 0.276" L x 0.276" W (7.00mm x 7.00mm) 0.280" L x 0.118" W (7.10mm x 3.00mm) 0.280" L x 0.140" W (7.10mm x 3.56mm) 0.287" L x 0.199" W (7.30mm x 5.05mm) 0.287" L x 0.201" W (7.30mm x 5.10mm) 0.289" L x 0.202" W (7.35mm x 5.12mm) 0.289" L x 0.202" W (7.36mm x 5.12mm) 0.290" L x 0.202" W (7.36mm x 5.12mm) 0.291" Dia x 0.118" T (7.40mm x 3.00mm) 0.291" Dia x 0.122" T (7.40mm x 3.10mm) 0.291" L x 0.118" W (7.40mm x 3.00mm) 0.291" L x 0.122" W (7.40mm x 3.10mm) 0.295" Dia x 0.150" T (7.50mm x 3.80mm) 0.295" Dia x 0.161" T (7.50mm x 4.10mm) 0.295" L x 0.201" W (7.50mm x 5.10mm) 0.299" Dia x 0.118" T (7.60mm x 3.00mm) 0.299" Dia x 0.122" T (7.60mm x 3.10mm) 0.299" L x 0.110" W (7.60mm x 2.80mm) 0.299" L x 0.161" W (7.60mm x 4.10mm) 0.303" Dia x 0.181" T (7.70mm x 4.60mm) 0.310" L x 0.140" W (7.87mm x 3.56mm) 0.311" Dia x 0.118" T (7.90mm x 3.00mm) 0.311" Dia x 0.122" T (7.90mm x 3.10mm) 0.315" Dia x 0.118" T (8.00mm x 3.00mm) 0.315" L x 0.248" W (8.00mm x 6.30mm) 0.331" L x 0.098" W (8.40mm x 2.50mm) 0.335" Dia x 0.276" T (8.50mm x 7.00mm) 0.337" L x 0.323" W (8.55mm x 8.20mm) 0.343" L x 0.250" W (8.70mm x 6.36mm) 0.350" Dia x 0.118" T (8.90mm x 3.00mm) 0.350" Dia x 0.150" W (8.89mm x 3.81mm) 0.350" L x 0.118" W (8.90mm x 3.00mm) 0.352" L x 0.291" W (8.95mm x 7.40mm) 0.353" L x 0.290" W (8.95mm x 7.40mm) 0.354" Dia x 0.138" T (9.00mm x 3.50mm) 0.354" Dia x 0.150" T (9.00mm x 3.80mm) 0.354" Dia x 0.197" T (9.00mm x 5.00mm) 0.354" L x 0.181" W (9.00mm x 4.60mm) 0.370" Dia x 0.118" T (9.40mm x 3.00mm) 0.370" Dia x 0.122" T (9.40mm x 3.10mm) 0.370" L x 0.291" W (9.40mm x 7.40mm) 0.374" Dia x 0.181" T (9.50mm x 4.60mm) 0.382" Dia x 0.118" T (9.70mm x 3.00mm) 0.382" L x 0.118" W (9.70mm x 3.00mm) 0.390" L x 0.098" W (9.90mm x 2.50mm) 0.394" L x 0.118" W (10.00mm x 3.00mm) 0.394" L x 0.122" W (10.00mm x 3.11mm) 0.394" L x 0.315" W (10.00mm x 8.00mm) 0.398" L x 0.138" W (10.10mm x 3.50mm) 0.402" Dia x 0.118" T (10.20mm x 3.00mm) 0.402" Dia x 0.122" T (10.20mm x 3.10mm) 0.402" L x 0.098" W (10.20mm x 2.50mm) 0.402" L x 0.118" W (10.20mm x 3.00mm) 0.402" L x 0.150" W (10.20mm x 3.80mm) 0.409" L x 0.118" W (10.40mm x 3.00mm) 0.409" L x 0.142" W (10.40mm x 3.60mm) 0.413" L x 0.335" W (10.50mm x 8.50mm) 0.421" L x 0.098" W (10.70mm x 2.50mm) 0.421" L x 0.118" W (10.70mm x 3.00mm) 0.429" L x 0.122" W (10.90mm x 3.11mm) 0.433" Dia x 0.138" T (11.00mm x 3.50mm) 0.433" Dia x 0.197" T (11.00mm x 5.00mm) 0.441" Dia x 0.118" T (11.20mm x 3.00mm) 0.441" Dia x 0.122" T (11.20mm x 3.10mm) 0.441" L x 0.118" W (11.20mm x 3.00mm) 0.441" L x 0.122" W (11.20mm x 3.10mm) 0.446" L x 0.200" W (11.33mm x 5.08mm) 0.449" L x 0.118" W (11.40mm x 3.00mm) 0.480" L x 0.098" W (12.20mm x 2.50mm) 0.480" L x 0.150" W (12.20mm x 3.81mm) 0.492" Dia x 0.197" T (12.50mm x 5.00mm) 0.492" Dia x 0.276" T (12.50mm x 7.00mm) 0.500" L x 0.118" W (12.70mm x 3.00mm) 0.504" Dia x 0.118" T (12.80mm x 3.00mm) 0.512" Dia x 0.122" T (13.00mm x 3.10mm) 0.512" Dia x 0.295" T (13.00mm x 7.50mm) 0.512" L x 0.150" W (13.00mm x 3.81mm) 0.530" L x 0.100" W (13.50mm x 2.50mm) 0.531" L x 0.100" W (13.50mm x 2.50mm) 0.532" Dia x 0.138" T (13.50mm x 3.50mm) 0.532" Dia x 0.197" T (13.50mm x 5.00mm) 0.532" Dia x 0.236" T (13.50mm x 6.00mm) 0.532" L x 0.100" W (13.50mm x 2.50mm) 0.532" L x 0.236" W (13.50mm x 6.00mm) 0.535" Dia x 0.118" T (13.58mm x 3.00mm) 0.535" Dia x 0.122" T (13.58mm x 3.10mm) 0.551" L x 0.118" W (14.00mm x 3.00mm) 0.551" L x 0.120" W (14.00mm x 3.00mm) 0.571" Dia x 0.118" T (14.50mm x 3.00mm) 0.583" L x 0.181" W (14.80mm x 4.60mm) 0.591" L x 0.181" W (15.00mm x 4.60mm) 0.600" Dia x 0.122" T (15.24mm x 3.10mm) 0.630" L x 0.098" W (16.00mm x 2.50mm) 0.630" L x 0.236" W (16.00mm x 6.00mm) 0.642" Dia x 0.118" T (16.30mm x 3.00mm) 0.648" L x 0.280" W (16.45mm x 7.10mm) 0.648" L x 0.283" W (16.45mm x 7.20mm) 0.650" L x 0.098" W (16.50mm x 2.50mm) 0.650" L x 0.118" W (16.50mm x 3.00mm) 0.660" Dia x 0.118" T (16.76mm x 3.00mm) 0.660" Dia x 0.122" T (16.76mm x 3.10mm) 0.669" L x 0.098" W (17.00mm x 2.50mm) 0.670" L x 0.115" W (16.95mm x 2.90mm) 0.670" L x 0.520" W (16.95mm x 2.90mm) 0.681" L x 0.425" W (17.30mm x 10.80mm) 0.689" Dia x 0.118" T (17.50mm x 3.00mm) 0.689" Dia x 0.138" T (17.50mm x 3.50mm) 0.689" Dia x 0.197" T (17.50mm x 5.00mm) 0.689" L x 0.118" W (17.50mm x 3.00mm) 0.689" L x 0.120" W (17.50mm x 3.00mm) 0.689" L x 0.138" W (17.50mm x 3.50mm) 0.742" L x 0.297" W (18.85mm x 7.55mm) 0.742" L x 0.305" W (18.85mm x 7.75mm) 0.752" L x 0.118" W (19.10mm x 3.00mm) 0.785" Dia x 0.118" T (19.93mm x 3.00mm) 0.785" Dia x 0.122" T (19.93mm x 3.10mm) 0.819" Dia x 0.118" T (20.80mm x 3.00mm) 0.827" L x 0.118" W (21.00mm x 3.00mm) 0.827" L x 0.199" W (21.00mm x 5.05mm) 0.827" L x 0.205" W (21.00mm x 5.20mm) 0.850" L x 0.118" W (21.60mm x 3.00mm) 0.862" L x 0.201" W (21.90mm x 5.10mm) 0.866" Dia x 0.138" T (22.00mm x 3.50mm) 0.866" Dia x 0.197" T (22.00mm x 5.00mm) 0.866" L x 0.142" W (22.00mm x 3.60mm) 0.866" L x 0.146" W (22.00mm x 3.70mm) 0.866" L x 0.199" W (22.00mm x 5.05mm) 0.866" L x 0.201" W (22.00mm x 5.10mm) 0.866" L x 0.205" W (22.00mm x 5.20mm) 0.874" L x 0.146" W (22.20mm x 3.70mm) 0.880" L x 0.417" W (22.35mm x 10.60mm) 0.904" L x 0.114" W (22.96mm x 2.90mm) 0.909" L x 0.177" W (23.10mm x 4.50mm) 0.909" L x 0.209" W (23.10mm x 5.30mm) 0.910" Dia x 0.118" T (23.11mm x 3.00mm) 0.910" Dia x 0.122" T (23.11mm x 3.10mm) 0.917" L x 0.154" W (23.30mm x 3.90mm) 0.925" L x 0.114" W (23.50mm x 2.90mm) 0.925" L x 0.138" W (23.50mm x 3.50mm) 0.925" L x 0.142" W (23.50mm x 3.60mm) 0.935" L x 0.118" W (23.75mm x 3.00mm) 0.935" L x 0.122" W (23.75mm x 3.10mm) 0.941" Dia x 0.118" T (23.90mm x 3.00mm) 0.949" L x 0.118" W (24.10mm x 3.00mm) 0.949" L x 0.120" W (24.10mm x 3.00mm) 0.950" L x 0.120" W (24.10mm x 3.00mm) 0.984" L x 0.199" W (25.00mm x 5.05mm) 0.984" L x 0.201" W (25.00mm x 5.10mm) 0.984" L x 0.283" W (25.00mm x 7.20mm) 0.984" L x 0.402" W (25.00mm x 10.20mm) 0.984" L x 0.447" W (25.00mm x 11.35mm) 0.992" L x 0.201" W (25.20mm x 5.10mm) 1.004" L x 0.906" W (25.50mm x 23.00mm) 1.008" L x 0.114" W (25.60mm x 2.90mm) 1.024" L x 0.209" W (26.00mm x 5.30mm) 1.024" L x 0.370" W (26.00mm x 9.40mm) 1.035" Dia x 0.118" T (26.30mm x 3.00mm) 1.035" Dia x 0.122" T (26.30mm x 3.10mm) 1.057" L x 0.146" W (26.85mm x 3.70mm) 1.063" L x 0.146" W (27.00mm x 3.70mm) 1.071" Dia x 0.118" T (27.20mm x 3.00mm) 1.140" L x 0.120" W (29.00mm x 3.00mm) 1.185" L x 0.522" W (30.10mm x 13.25mm) 1.201" L x 0.122" W (30.50mm x 3.10mm)	- 0.028" (0.70mm) 0.043" (1.10mm) 0.146" (3.70mm) 0.197" (5.00mm) 0.201" (5.10mm) 0.217" (5.50mm) 0.256" (6.50mm) 0.295" (7.50mm) 0.327" (8.30mm) 0.366" (9.30mm) 0.370" (9.40mm) 0.374" (9.50mm) 0.390" (9.90mm) 0.394" (10.00mm) 0.413" (10.50mm) 0.425" (10.80mm) 0.433" (11.00mm) 0.441" (11.20mm) 0.449" (11.40mm) 0.450" (11.43mm) 0.453" (11.50mm) 0.457" (11.60mm) 0.461" (11.70mm) 0.472" (12.00mm) 0.480" (12.20mm) 0.492" (12.50mm) 0.496" (12.60mm) 0.500" (12.70mm) 0.504" (12.80mm) 0.516" (13.10mm) 0.532" (13.50mm) 0.535" (13.60mm) 0.539" (13.70mm) 0.543" (13.80mm) 0.550" (13.97mm) 0.559" (14.20mm) 0.563" (14.30mm) 0.567" (14.40mm) 0.571" (14.50mm) 0.591" (15.00mm) 0.598" (15.20mm) 0.610" (15.50mm) 0.614" (15.60mm) 0.618" (15.70mm) 0.622" (15.80mm) 0.642" (16.30mm) 0.650" (16.50mm) 0.669" (17.00mm) 0.673" (17.10mm) 0.681" (17.30mm) 0.689" (17.50mm) 0.709" (18.00mm) 0.710" (18.03mm) 0.717" (18.20mm) 0.720" (18.30mm) 0.740" (18.80mm) 0.744" (18.90mm) 0.748" (19.00mm) 0.752" (19.10mm) 0.756" (19.20mm) 0.760" (19.30mm) 0.776" (19.70mm) 0.780" (19.80mm) 0.819" (20.80mm) 0.823" (20.90mm) 0.827" (21.00mm) 0.831" (21.10mm) 0.835" (21.20mm) 0.839" (21.30mm) 0.850" (21.60mm) 0.854" (21.70mm) 0.862" (21.90mm) 0.866" (22.00mm) 0.874" (22.20mm) 0.882" (22.40mm) 0.886" (22.50mm) 0.902" (22.90mm) 0.906" (23.00mm) 0.925" (23.50mm) 0.949" (24.10mm) 0.980" (24.90mm) 0.992" (25.20mm) 1.000" (25.40mm) 1.004" (25.50mm) 1.008" (25.60mm) 1.012" (25.70mm) 1.020" (25.90mm) 1.024" (26.00mm) 1.028" (26.10mm) 1.032" (26.20mm) 1.043" (26.50mm) 1.051" (26.70mm) 1.055" (26.80mm) 1.091" (27.70mm) 1.098" (27.90mm) 1.102" (28.00mm) 1.118" (28.40mm) 1.126" (28.60mm) 1.130" (28.70mm) 1.142" (29.00mm) 1.150" (29.20mm) 1.154" (29.30mm) 1.169" (29.70mm) 1.189" (30.20mm) 1.220" (31.00mm) 1.224" (31.10mm) 1.244" (31.60mm) 1.252" (31.80mm)	- 0.017" (0.43mm) 0.019" (0.48mm) 0.021" (0.53mm) 0.022" (0.55mm) 0.024" (0.60mm) 0.024" (0.62mm) 0.025" (0.64mm) 0.026" (0.65mm) 0.026" (0.67mm) 0.027" (0.68mm) 0.028" (0.70mm) 0.028" (0.71mm) 0.029" (0.74mm) 0.030" (0.75mm) 0.030" (0.76mm) 0.031" (0.78mm) 0.031" (0.80mm) 0.032" (0.80mm) 0.032" (0.82mm) 0.033" (0.85mm) 0.035" (0.89mm) 0.035" (0.90mm) 0.037" (0.93mm) 0.038" (0.97mm) 0.039" (1.00mm) 0.040" (1.02mm) 0.041" (1.05mm) 0.042" (1.07mm) 0.043" (1.10mm) 0.045" (1.14mm) 0.045" (1.15mm) 0.046" (1.17mm) 0.047" (1.20mm) 0.048" (1.22mm) 0.049" (1.25mm) 0.051" (1.30mm) 0.053" (1.34mm) 0.055" (1.40mm) 0.057" (1.45mm) 0.057" (1.46mm) 0.059" (1.50mm) 0.060" (1.52mm) 0.061" (1.55mm) 0.063" (1.60mm) 0.071" (1.80mm) 0.076" (1.94mm) 0.077" (1.95mm) 0.079" (2.00mm) 0.091" (2.30mm) 0.118" (3.00mm) 0.125" (3.18mm) 0.126" (3.20mm) 0.134" (3.40mm) 0.146" (3.70mm) 0.150" (3.80mm) 0.276" (7.00mm) 0.354" (9.00mm) 0.413" (10.50mm) 0.451" (11.45mm) 0.453" (11.50mm) 0.461" (11.70mm) 0.484" (12.30mm) 0.485" (12.32mm)	- 0.118" (3.00mm) 0.197" (5.00mm) 0.199" (5.05mm) 0.200" (5.08mm) 0.201" (5.10mm) 0.400" (10.15mm) 0.402" (10.20mm)

全部重置

应用所有

结果:

品牌型号	库存	操作	数据表	封装/外壳	系列	包装	产品状态	类型	电压 - 最大值	保持电流 (Ih)（最大值）	触发电流 (It)	电流 - 最大值	触发时间	电阻 - 初始 (Ri)（最小值）	电阻 - 触发后 (R1)（最大值）	电阻 - 25°C（典型值）	工作温度	等级	认证	额定值	安装类型	尺寸 / 尺寸	高度 - 安装后（最大值）	厚度（最大值）	引线间距
MINISMDC075F-2 PTC RESET FUSE 13.2V 750MA 1812 Littelfuse Inc.	34,734	立即询价	数据表	1812 (4532 Metric), Concave	PolySwitch®, miniSMD	Tape & Reel (TR)	Active	Polymeric	13.2V	750 mA	1.5 A	100 A	200 ms	110 mOhms	450 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.179" L x 0.128" W (4.55mm x 3.24mm)	-	0.024" (0.62mm)	-
MINISMDC050F-2 PTC RESET FUSE 24V 500MA 1812 Littelfuse Inc.	102,596	立即询价	数据表	1812 (4532 Metric), Concave	PolySwitch®, miniSMD	Tape & Reel (TR)	Active	Polymeric	24V	500 mA	1 A	100 A	150 ms	150 mOhms	1 Ohms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.179" L x 0.128" W (4.55mm x 3.24mm)	-	0.024" (0.62mm)	-
NANOSMDC020F-2 PTC RESET FUSE 24V 200MA 1206 Littelfuse Inc.	21,729	立即询价	数据表	1206 (3216 Metric), Concave	PolySwitch®, nanoSMDC020F	Tape & Reel (TR)	Active	Polymeric	24V	200 mA	420 mA	100 A	0.1 s	650 mOhms	3.1 Ohms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.126" L x 0.063" W (3.20mm x 1.59mm)	-	0.028" (0.70mm)	-
MINISMDC014F-2 PTC RESET FUSE 60V 140MA 1812 Littelfuse Inc.	49,757	立即询价	数据表	1812 (4532 Metric), Concave	PolySwitch®, miniSMD	Tape & Reel (TR)	Active	Polymeric	60V	140 mA	280 mA	10 A	8 ms	1.5 Ohms	6 Ohms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.179" L x 0.128" W (4.55mm x 3.24mm)	-	0.035" (0.89mm)	-
NANOSMDC010F-2 PTC RESET FUSE 60V 100MA 1206 Littelfuse Inc.	33,016	立即询价	数据表	1206 (3216 Metric), Concave	nanoSMD	Tape & Reel (TR)	Active	Polymeric	60V	100 mA	250 mA	10 A	1 s	-	-	-	-	-	-	-	Surface Mount	0.126" L x 0.063" W (3.20mm x 1.59mm)	-	0.039" (1.00mm)	-
NANOSMDC016F-2 PTC RESET FUSE 48V 160MA 1206 Littelfuse Inc.	37,252	立即询价	数据表	1206 (3216 Metric), Concave	PolySwitch®, nanoSMD	Tape & Reel (TR)	Active	Polymeric	48V	160 mA	450 mA	10 A	300 ms	1.1 Ohms	-	-	-	-	-	-	Surface Mount	0.126" L x 0.063" W (3.20mm x 1.60mm)	-	0.039" (1.00mm)	-
MINISMDC020F-2 PTC RESET FUSE 30V 200MA 1812 Littelfuse Inc.	30,478	立即询价	数据表	1812 (4532 Metric), Concave	PolySwitch®, miniSMD	Tape & Reel (TR)	Active	Polymeric	30V	200 mA	400 mA	10 A	20 ms	600 mOhms	3.3 Ohms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.179" L x 0.128" W (4.55mm x 3.24mm)	-	0.035" (0.89mm)	-
RXEF050-2 PTC RESET FUSE 72V 500MA RADIAL Littelfuse Inc.	13,378	立即询价	数据表	Radial, Disc	PolySwitch®, RXEF	Tape & Reel (TR)	Active	Polymeric	72V	500 mA	1 A	40 A	4 s	500 mOhms	1.17 Ohms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.311" Dia x 0.118" T (7.90mm x 3.00mm)	0.539" (13.70mm)	-	0.199" (5.05mm)
RXEF010 PTC RESET FUSE 60V 100MA RADIAL Littelfuse Inc.	8,776	立即询价	数据表	Radial, Disc	PolySwitch®, RXEF	Bag	Active	Polymeric	60V	100 mA	200 mA	40 A	4 s	2.5 Ohms	7.5 Ohms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.291" Dia x 0.118" T (7.40mm x 3.00mm)	0.457" (11.60mm)	-	0.199" (5.05mm)
RXEF025 PTC RESET FUSE 72V 250MA RADIAL Littelfuse Inc.	19,910	立即询价	数据表	Radial, Disc	PolySwitch®, RXEF	Bag	Active	Polymeric	72V	250 mA	500 mA	40 A	2.5 s	1.25 Ohms	3 Ohms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.291" Dia x 0.118" T (7.40mm x 3.00mm)	0.500" (12.70mm)	-	0.199" (5.05mm)
NANOSMDC012F-2 PTC RESET FUSE 48V 120MA 1206 Littelfuse Inc.	20,303	立即询价	数据表	1206 (3216 Metric), Concave	PolySwitch®, nanoSMD	Tape & Reel (TR)	Active	Polymeric	48V	120 mA	390 mA	10 A	200 ms	1.4 Ohms	6.5 Ohms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.126" L x 0.063" W (3.20mm x 1.59mm)	-	0.039" (1.00mm)	-
RXEF050 PTC RESET FUSE 72V 500MA RADIAL Littelfuse Inc.	10,234	立即询价	数据表	Radial, Disc	PolySwitch®, RXEF	Bag	Active	Polymeric	72V	500 mA	1 A	40 A	4 s	500 mOhms	1.17 Ohms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.311" Dia x 0.118" T (7.90mm x 3.00mm)	0.539" (13.70mm)	-	0.199" (5.05mm)
NANOSMDC150F-2 PTC RESET FUSE 6V 1.5A 1206 Littelfuse Inc.	25,806	立即询价	数据表	1206 (3216 Metric), Concave	PolySwitch®, nanoSMD	Tape & Reel (TR)	Active	Polymeric	6V	1.5 A	3 A	100 A	300 ms	40 mOhms	110 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.126" L x 0.063" W (3.20mm x 1.59mm)	-	0.035" (0.89mm)	-
NANOSMDC035F-2 PTC RESET FUSE 16V 350MA 1206 Littelfuse Inc.	16,319	立即询价	数据表	1206 (3216 Metric), Concave	PolySwitch®, nanoSMD	Tape & Reel (TR)	Active	Polymeric	16V	350 mA	750 mA	20 A	100 ms	450 mOhms	1.35 Ohms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.126" L x 0.063" W (3.20mm x 1.59mm)	-	0.032" (0.82mm)	-
NANOSMDC050F/13.2-2 PTC RESET FUSE 13.2V 500MA 1206 Littelfuse Inc.	15,397	立即询价	数据表	1206 (3216 Metric), Concave	PolySwitch®, nanoSMD	Tape & Reel (TR)	Active	Polymeric	13.2V	500 mA	1.1 A	100 A	100 ms	200 mOhms	-	-	-	-	-	-	Surface Mount	0.126" L x 0.063" W (3.20mm x 1.60mm)	-	0.029" (0.74mm)	-

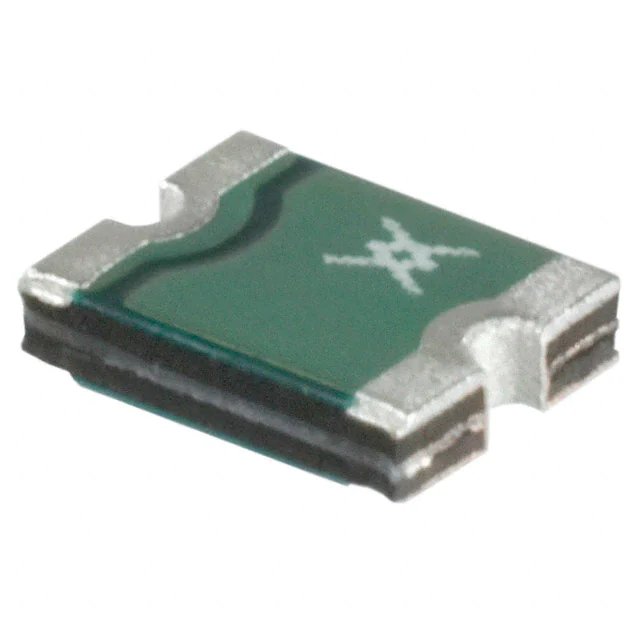

MICROSMD005F-2 PTC RESET FUSE 30V 50MA 1210 Littelfuse Inc.	14,613	立即询价	数据表	1210 (3225 Metric), Concave	PolySwitch®, microSMD	Tape & Reel (TR)	Active	Polymeric	30V	50 mA	150 mA	10 A	1.5 s	3.6 Ohms	50 Ohms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.127" L x 0.102" W (3.22mm x 2.58mm)	-	0.033" (0.85mm)	-
NANOASMDC010F-2 PTC RESET FUSE 60V 100MA 1206 Littelfuse Inc.	35,052	立即询价	数据表	1206 (3216 Metric), Concave	PolySwitch®, nanoASMD	Tape & Reel (TR)	Active	Polymeric	60V	100 mA	250 mA	10 A	1 s	1.6 Ohms	15 Ohms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Surface Mount	0.126" L x 0.062" W (3.20mm x 1.58mm)	-	0.039" (1.00mm)	-
MICROSMD010F-2 PTC RESET FUSE 30V 100MA 1210 Littelfuse Inc.	30,648	立即询价	数据表	1210 (3225 Metric), Concave	PolySwitch®, microSMD	Tape & Reel (TR)	Active	Polymeric	30V	100 mA	250 mA	10 A	1 s	2.1 Ohms	15 Ohms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.127" L x 0.102" W (3.22mm x 2.58mm)	-	0.033" (0.85mm)	-
NANOSMDC110F-2 PTC RESET FUSE 6V 1.1A 1206 Littelfuse Inc.	23,501	立即询价	数据表	1206 (3216 Metric), Concave	PolySwitch®, nanoSMD	Tape & Reel (TR)	Active	Polymeric	6V	1.1 A	2.2 A	100 A	100 ms	70 mOhms	200 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.126" L x 0.063" W (3.20mm x 1.59mm)	-	0.026" (0.67mm)	-
MINISMDC030F-2 PTC RESET FUSE 30V 300MA 1812 Littelfuse Inc.	5,962	立即询价	数据表	1812 (4532 Metric), Concave	PolySwitch®, miniSMD	Tape & Reel (TR)	Active	Polymeric	30V	300 mA	600 mA	40 A	100 ms	200 mOhms	1.75 Ohms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.179" L x 0.128" W (4.55mm x 3.24mm)	-	0.035" (0.89mm)	-

共 1423 记录«上一页12 3 4...72 下一页»
