购物车()摇臂开关
| 图片 | 品牌型号 | 库存 | 价格 | 操作 | 数据表 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 颜色 - 执行器/帽 | 执行器标记 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 防护等级 | 特性 | 面板开孔尺寸 | 工作温度 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CR102J25S215QFSWITCH ROCKER SPST 16A 125V |
3,996 | 0.00000 |
|
数据表 | CR | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Round | Black, Red | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | Two-Tone Rocker | Circular - 20.20mm Dia | -20°C ~ 85°C | cULus |
|
D502J12S2AHQASWITCH ROCKER SPST 10A 125V |
9,042 | 0.00000 |
|
数据表 | D | Bulk | Active | Panel Mount, Snap-In, Right Angle | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | PC Pin | - | - | Rectangular - 19.20mm x 12.90mm | -30°C ~ 65°C | cULus |
|
DF62J12S215PQASWITCH ROCKER DPST 16A 125V |
1,992 | 0.00000 |
|
数据表 | DF | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC), 6A (DC) | 125 V | 48 V | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 26.14mm x 12.50mm | -20°C ~ 85°C | cULus |
|
DM64J72S205Q3SWITCH ROCKER DPST 10A 125V |
363 | 0.00000 |
|
数据表 | DM | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | LED, Red | 2.1 VDC | Quick Connect - 0.110" (2.8mm) | - | Positive Detent | Rectangular - 19.20mm x 12.90mm | -20°C ~ 65°C | cULus |
|
DF62J12S2AHQASWITCH ROCKER DPST 16A 125V |
1,057 | 0.00000 |
|
数据表 | DF | Tube | Active | Panel Mount, Snap-In, Right Angle | DPST | On-Off | 16A (AC), 6A (DC) | 125 V | 48 V | Concave (Curved) | Black | O I | - | - | PC Pin | - | - | Rectangular - 26.14mm x 12.50mm | -20°C ~ 85°C | cULus |
|
|
DM64J72S205Q6SWITCH ROCKER DPST 10A 125V |
546 | 0.00000 |
|
数据表 | DM | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | LED, Green | 2.1 VDC | Quick Connect - 0.110" (2.8mm) | - | Positive Detent | Rectangular - 19.20mm x 12.90mm | -20°C ~ 65°C | cULus |
|
7101J1AQE2SWITCH ROCKER SPDT 5A 120V |
389 | 0.00000 |
|
数据表 | 7000 | Tray | Active | Through Hole, Right Angle | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
E101J1ABE2SWITCH ROCKER SPDT 0.4VA 20V |
200 | 0.00000 |
|
数据表 | E | Tray | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
E101J1AQE2SWITCH ROCKER SPDT 7.5A 125V |
874 | 0.00000 |
|
数据表 | E | Tray | Active | Through Hole, Right Angle | SPDT | On-On | 7.5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
ET01J6ABE2SWITCH ROCKER SPDT 0.4VA 20V |
612 | 0.00000 |
|
数据表 | ET | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | cULus |
|
7101J1V3QE2SWITCH ROCKER SPDT 5A 120V |
1,919 | 0.00000 |
|
数据表 | 7000 | Tray | Active | Through Hole | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
E101J1AV2BE2SWITCH ROCKER SPDT 0.4VA 20V |
1,141 | 0.00000 |
|
数据表 | E | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
CL102J72S205QASWITCH ROCKER SPST 16A 125V |
210 | 0.00000 |
|
数据表 | CL | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Standard V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Positive Detent | Rectangular - 28.80mm x 14.00mm | -20°C ~ 80°C | cULus |
|
DA102J12S215DQFSWITCH ROCKER SPST 16A 125V |
10,489 | 0.00000 |
|
数据表 | DA | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | ON OFF, Vertical | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -20°C ~ 85°C | cULus |
|
DA102J23S215PQFSWITCH ROCKER SPST 16A 125V |
4,614 | 0.00000 |
|
数据表 | DA | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Red, White | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | Two-Tone Rocker | Rectangular - 19.40mm x 13.00mm | -20°C ~ 85°C | cULus |
|

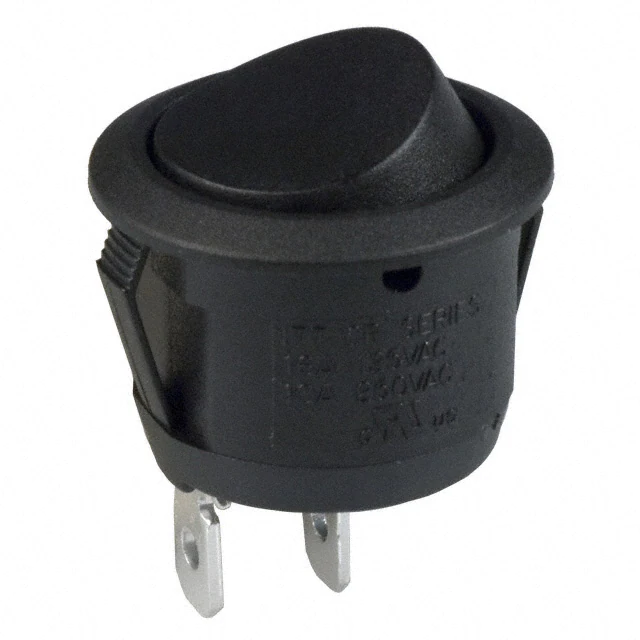

CR102J12S215QFSWITCH ROCKER SPST 16A 125V |
1,229 | 0.00000 |
|
数据表 | CR | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Round | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -20°C ~ 85°C | cULus |
|
DA102J11S215PQFSWITCH ROCKER SPST 16A 125V |
1,841 | 0.00000 |
|
数据表 | DA | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | White | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -20°C ~ 85°C | cULus |
|
DA101J12S215QFSWITCH ROCKER SPDT 16A 125V |
6,431 | 0.00000 |
|
数据表 | DA | Tray | Active | Panel Mount, Snap-In | SPDT | On-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -20°C ~ 85°C | cULus |
|
DA102J12S215HQFSWITCH ROCKER SPST 16A 125V |
3,320 | 0.00000 |
|
数据表 | DA | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -20°C ~ 85°C | cULus |
|
DA102J3RS215QF7SWITCH ROCKER SPST 16A 125V |
10,516 | 0.00000 |
|
数据表 | DA | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | No Marking | Neon, Red | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -20°C ~ 85°C | cULus |
