| 图片 | 品牌型号 | 库存 | 价格 | 操作 | 数据表 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 颜色 - 执行器/帽 | 执行器标记 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 防护等级 | 特性 | 面板开孔尺寸 | 工作温度 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CR102J25S215QFSWITCH ROCKER SPST 16A 125V C&K |
3,996 | 0.00000 |
|
数据表 | CR | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Round | Black, Red | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | Two-Tone Rocker | Circular - 20.20mm Dia | -20°C ~ 85°C | cULus |
|
D502J12S2AHQASWITCH ROCKER SPST 10A 125V C&K |
9,042 | 0.00000 |
|
数据表 | D | Bulk | Active | Panel Mount, Snap-In, Right Angle | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | PC Pin | - | - | Rectangular - 19.20mm x 12.90mm | -30°C ~ 65°C | cULus |
|

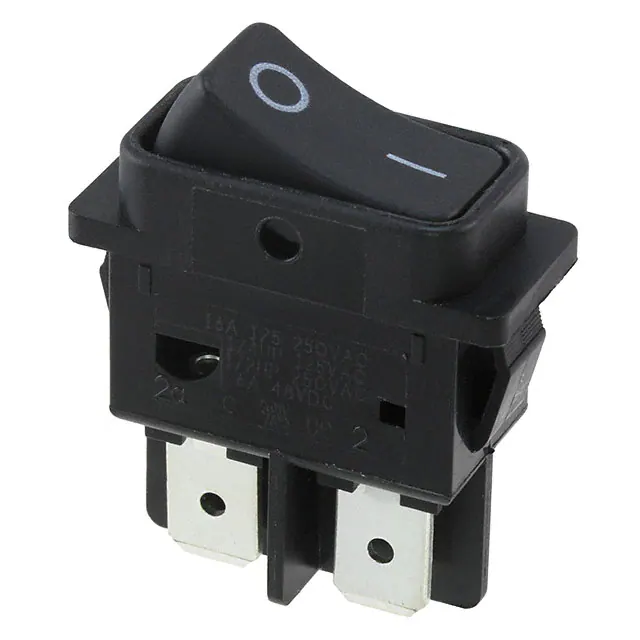

DF62J12S215PQASWITCH ROCKER DPST 16A 125V C&K |
1,992 | 0.00000 |
|
数据表 | DF | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC), 6A (DC) | 125 V | 48 V | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 26.14mm x 12.50mm | -20°C ~ 85°C | cULus |
|
DM64J72S205Q3SWITCH ROCKER DPST 10A 125V C&K |
363 | 0.00000 |
|
数据表 | DM | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | LED, Red | 2.1 VDC | Quick Connect - 0.110" (2.8mm) | - | Positive Detent | Rectangular - 19.20mm x 12.90mm | -20°C ~ 65°C | cULus |
|

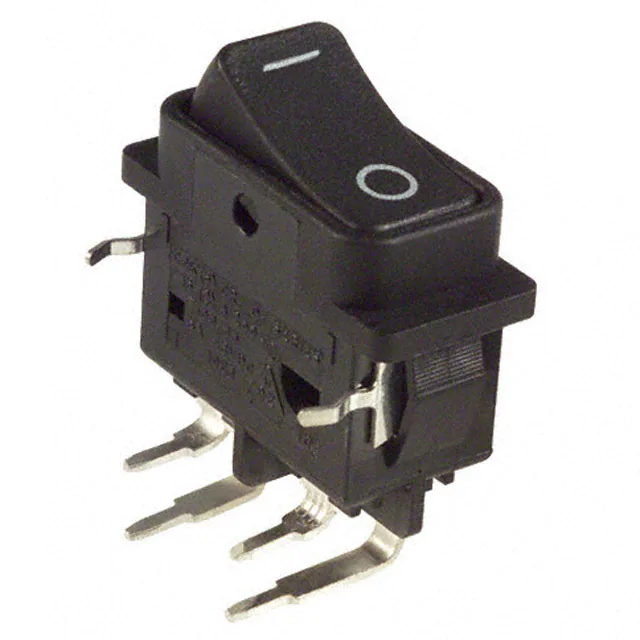

DF62J12S2AHQASWITCH ROCKER DPST 16A 125V C&K |
1,057 | 0.00000 |
|
数据表 | DF | Tube | Active | Panel Mount, Snap-In, Right Angle | DPST | On-Off | 16A (AC), 6A (DC) | 125 V | 48 V | Concave (Curved) | Black | O I | - | - | PC Pin | - | - | Rectangular - 26.14mm x 12.50mm | -20°C ~ 85°C | cULus |
|
|
DM64J72S205Q6SWITCH ROCKER DPST 10A 125V C&K |
546 | 0.00000 |
|
数据表 | DM | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | LED, Green | 2.1 VDC | Quick Connect - 0.110" (2.8mm) | - | Positive Detent | Rectangular - 19.20mm x 12.90mm | -20°C ~ 65°C | cULus |
|

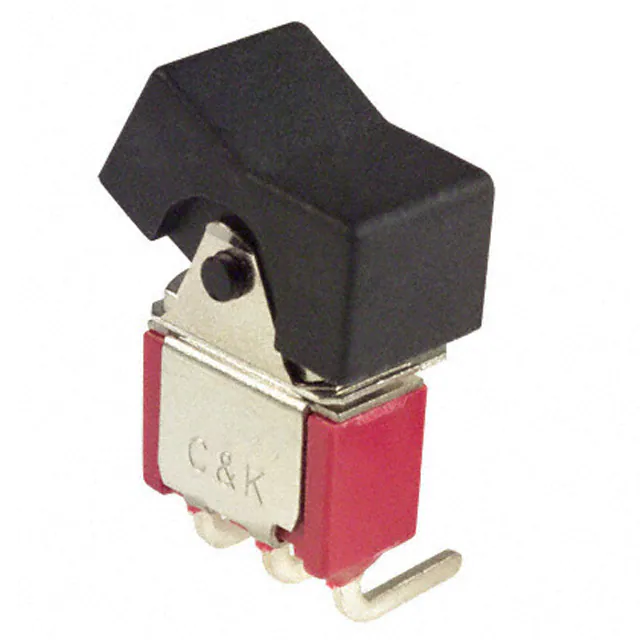

7101J1AQE2SWITCH ROCKER SPDT 5A 120V C&K |
389 | 0.00000 |
|
数据表 | 7000 | Tray | Active | Through Hole, Right Angle | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|

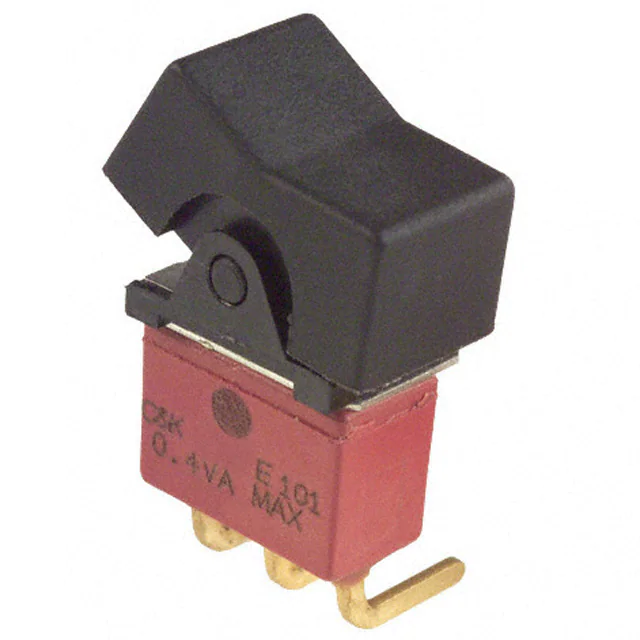

E101J1ABE2SWITCH ROCKER SPDT 0.4VA 20V C&K |
200 | 0.00000 |
|
数据表 | E | Tray | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|

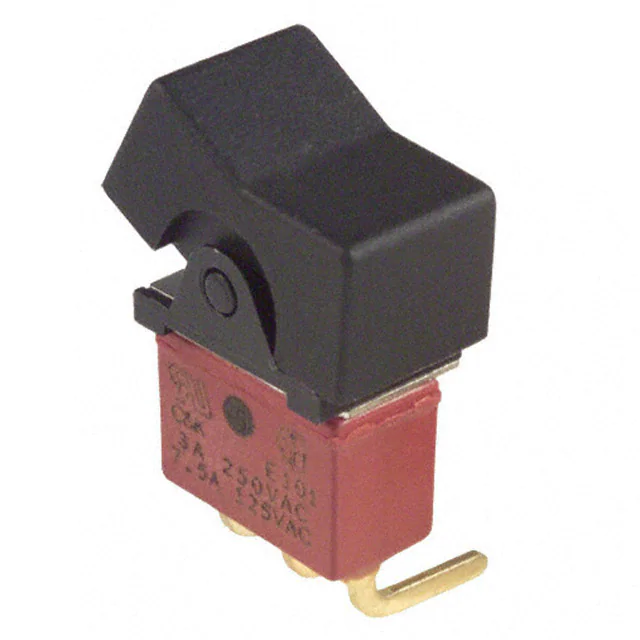

E101J1AQE2SWITCH ROCKER SPDT 7.5A 125V C&K |
874 | 0.00000 |
|
数据表 | E | Tray | Active | Through Hole, Right Angle | SPDT | On-On | 7.5A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
ET01J6ABE2SWITCH ROCKER SPDT 0.4VA 20V C&K |
612 | 0.00000 |
|
数据表 | ET | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | cULus |
